ELEMENTS | Designer radiator

ELEMENTS | Designer radiator

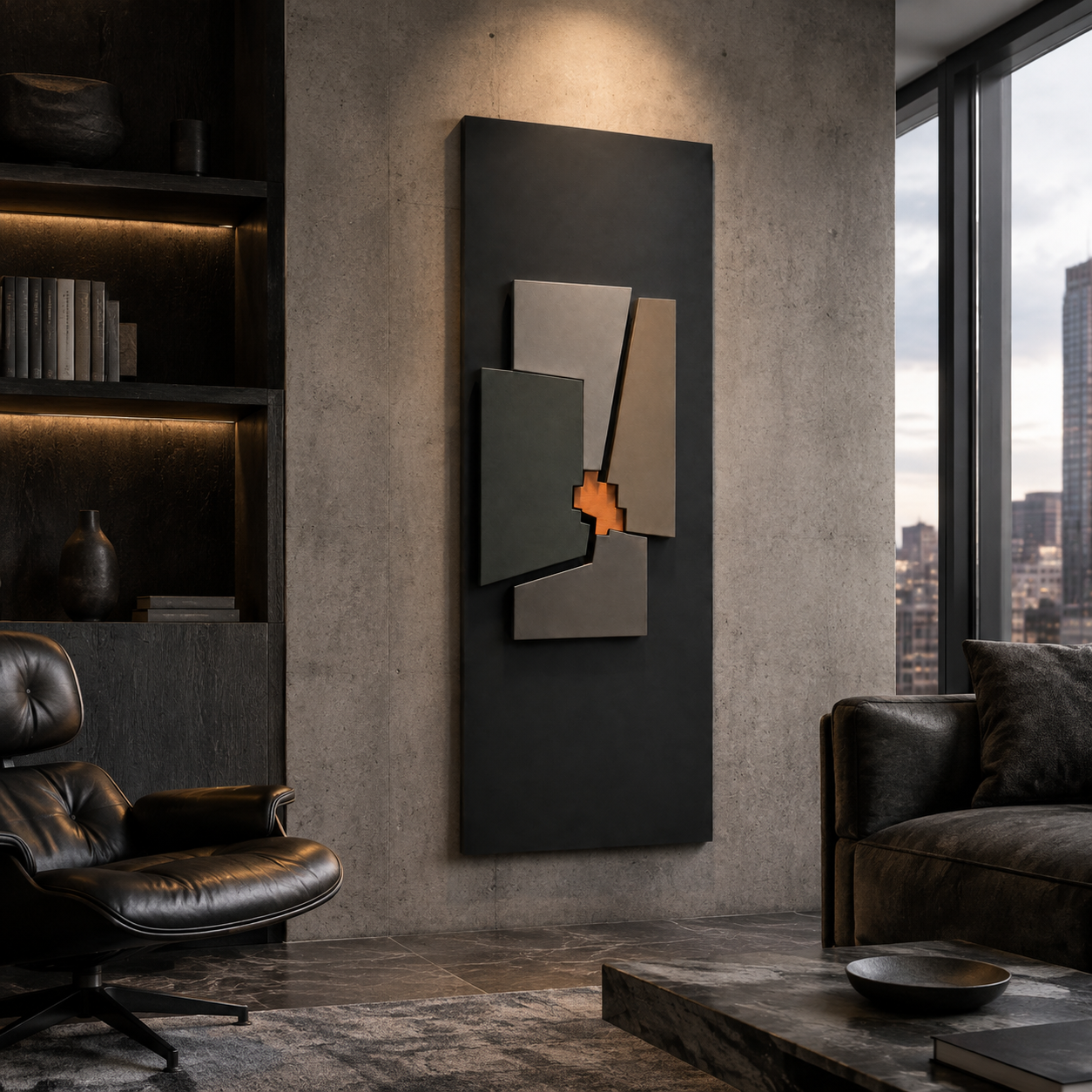

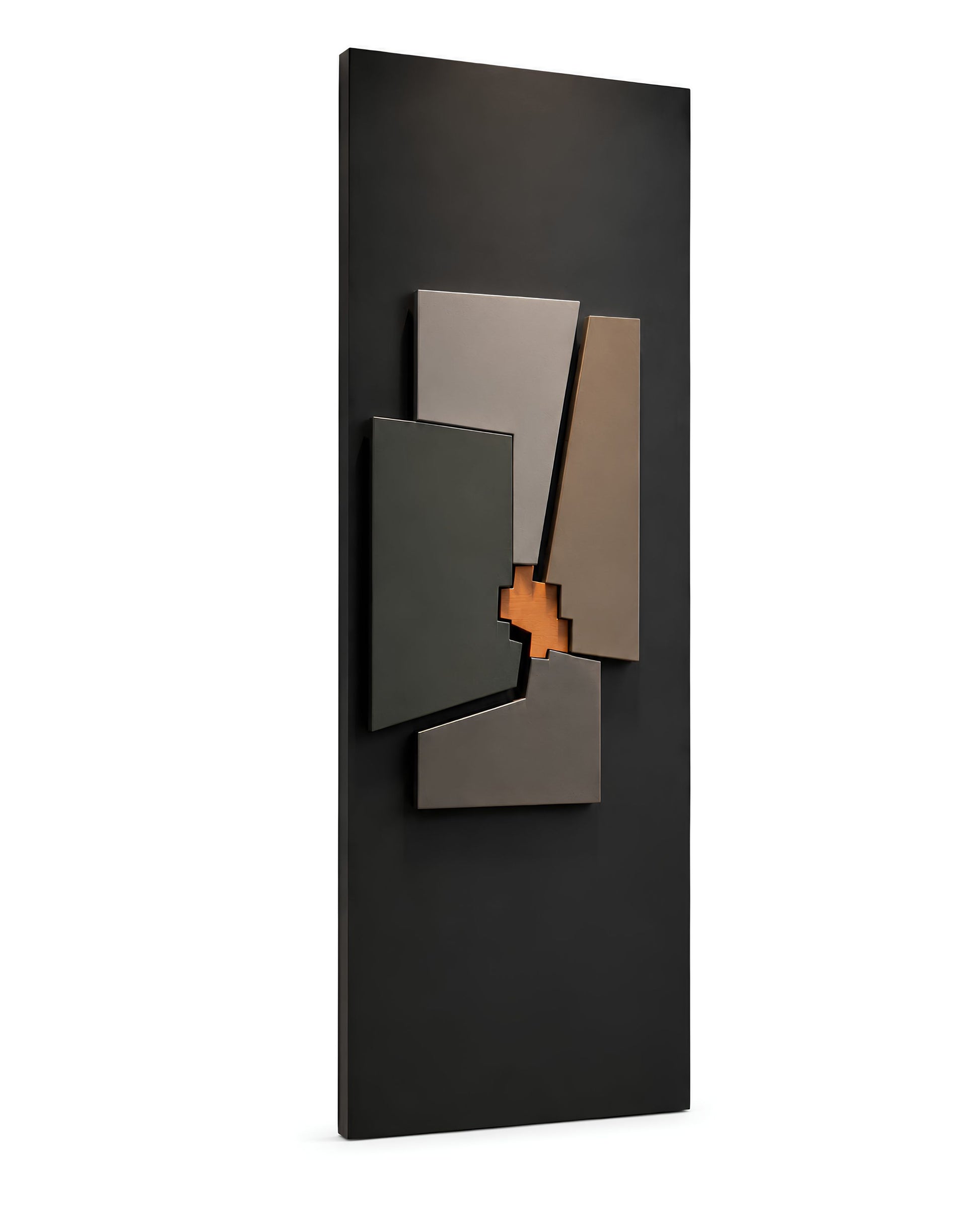

ELEMENTS — a designer radiator with a one-of-a-kind design. Made from 100% aluminium elements, it combines high heat output with a distinctive appearance. A refined blend of modernism and abstraction, suitable for both offices and home interiors.

Size

SIZE AND HEATED AREA

For water-based heating: approximate area at an assumed heat loss of 100 W/m².

Size / mode
(mm.)
Pipe centres
(mm.)
Output
(W)
Area
(m²)
1900/620
Water-based · ΔT 50°C
500 2700 27
1900/620
Water-based · ΔT 30°C
500 1390 13,9
1900/620
Electric heating element only
500 1500 up to 20

Areas are indicative and do not guarantee heating performance. The correct choice depends on insulation, glazing, room height and the system's operating temperatures.

When using only the electric heating element, output is 1500 W. Approximate area up to 20 m² at heat losses of up to 75 W/m². The stated water-based heating outputs do not apply to electric operation.

CUSTOM SIZE AND DESIGN

If the configurations listed above do not meet your needs, please send us an enquiry HERE . We manufacture custom sizes. We will respond to your enquiry within 24 hours.

Quantity
Regular price €1.800,00
Regular price Sale price €1.800,00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Lower energy consumption
  • Aluminium does not rust
  • Customisation options
View full details
  • ECO-FRIENDLY

  • EASY INSTALLATION

  • MADE FROM 100% ALUMINIUM

  • 10-YEAR WARRANTY

Easy installation

ELEMENTS is made from aluminium elements with an abstract appearance.

TECHNICAL SPECIFICATIONS

Dimensions H/W
(mm.)
Pipe centres
(mm.)
Heat output ΔT 50°C
(W)
Heat output ΔT 30°C
(W)
n
(coefficient)
Electric heating element
(W)
Water capacity
(l)
Weight
(kg)
1900/620 500 2700 1390 1.300 1500 12 30
  • 4 × 1/2" THREAD

  • TESTED AT 15 BAR

  • 10 BAR OPERATING PRESSURE

  • MAXIMUM TEMPERATURE 90°C

  • CAN BE FITTED WITH AN ELECTRIC HEATING ELEMENT

FAQ – ELEMENTS designer radiator

Frequently asked questions about ELEMENTS

Is ELEMENTS suitable for homes and offices?

ELEMENTS is a designer radiator made from aluminium elements, with an abstract appearance suited to homes and offices.

What is ELEMENTS made from?

ELEMENTS is made from 100% aluminium elements.

Is it available in different sizes and colours?

Yes. The designer radiator ELEMENTS can be manufactured in different sizes and designs to suit the project and interior.

Where can I find the heat outputs for ELEMENTS?

The technical specifications table lists the heat outputs for water heating at the stated temperature conditions.
